OPTIMUS S.A. is the leading Spanish company in the design, manufacture and distribution of public address (PA), voice alarm (VA) and intercom equipment.


TH03FMultifunction substation with call, presence and intercom with master or other substations. LCD

Multifunction intercommunication unit that allows all calls type, presence and communication with the central as well with the other intercommunication units. It includes privacy function, LEDs indicators for active presence and call in progress, and connector for patient handheld calling module. With active presence receives calls from other rooms, with screen identification, and can communicate with them. OPTIMUS model ref. TH-03F.

datasheet

TH02FMultifunction substation with call, presence and intercom with master or other substations

Multifunction intercommunication unit that allows all calls type, presence and communication with the central as well with the other intercommunication units. It includes privacy function, LEDs indicators for active presence and call in progress, and connector for patient handheld calling module. With active presence receives calls from other rooms and can communicate with them. OPTIMUS model ref. TH-02F.

datasheet

EP405Audio substation with vandal proof  3.0 mm metal plate. Flush mount. Metal push-button

Vandal proof substation for SMC intercom system. Stainless steel front panel and metallic call button. Flush mounting. Includes high sensitivity omnidirectional microphone and 4 W mylar speaker moisture resistant. Valdal proof protection, with front panel thickness of 3 mm, internal metal grill for speaker, stainless steel call button and special torx type screws to secure the front panel. Power supply 24 V DC. Consumption 25 mA / 230 mA. Dimensions 113 x 176 x 1.5 mm. OPTIMUS model ref. EP-405.

datasheet

EP405HAudio substation vandal proof. Flush mount. Metal push-button. Special SOS

Vandal proof substation for SMC intercom system, special model for emergency call points, such as those installed in the refuge areas. With stainless steel front pannel, metal call button & internal protection for speaker and microphone, large SOS letters in red, pre-recorded message for call in progress, accessibility pictogram, CALL word in braille. Flush mounting. Includes high sensitivity omnidirectional microphone and 4 W mylar speaker moisture resistant. Valdal proof protection, with front panel thickness of 3 mm, internal metal grill for speaker, stainless steel call button and special torx type screws to secure the front panel. Power supply 24 V DC. Consumption 25 mA / 230 mA. Dimensions 113 x 176 x 1.5 mm. OPTIMUS model ref. EP-405.

datasheet

SAMMAudio substation with metal plate. Flush mount. Metal push-button

Audio substation for SMC intercom system. Stainless steel front panel and metallic call button. Flush mounting. Includes high sensitivity omnidirectional microphone and 4 W mylar speaker moisture resistant. Supplied with compact metal housing, internal metal grill for speaker vandal proof protection and special allen type screws to secure the front panel. Power supply 24 V DC. Consumption 25 mA / 230 mA. Dimensions 128 x 110 x 5 mm. OPTIMUS model ref. SAM-M.

datasheet

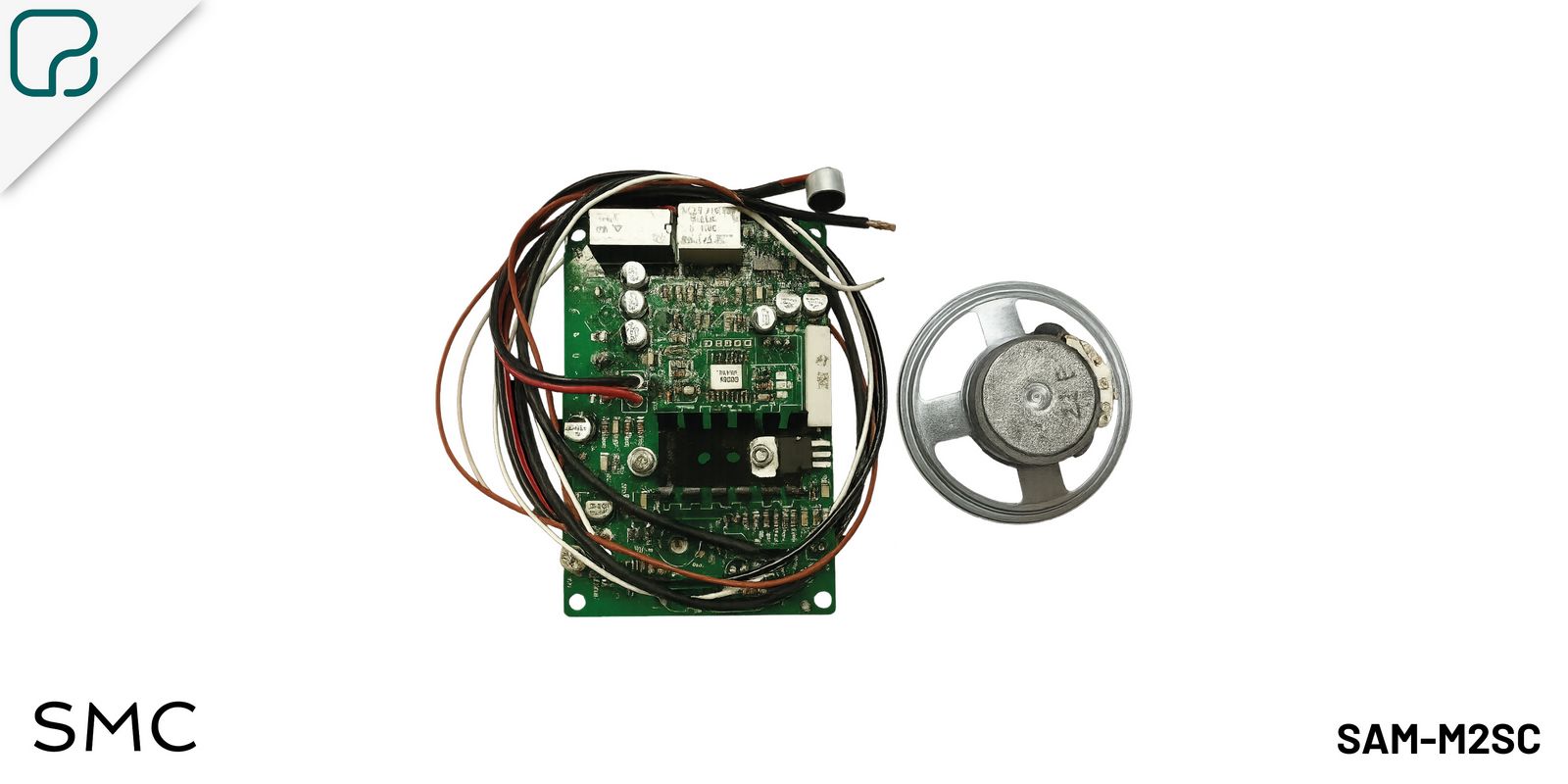

SAMM2Electronic board of audio substation mounted in a metallic box

Electronic board of audio substation for SMC intercom system. Includes high sensitivity omnidirectional microphone and 4 W mylar speaker moisture resistant. Supplied with a metal box for electronics and two cable outlets. Power supply 24 V DC. Consumption 25 mA / 230 mA. Dimensions 160 x 110 x 40 mm. OPTIMUS model ref. SAM-M2.

datasheet
